BRIDGE SCREENS
High precisions screens use our sophisticated technology.
-
-
Features
The shape of this screen’s holes is bridge-shaped. The holes on raised-hole screens face the same direction, but the holes on bridge-shaped screens are open on both sides for a higher open area ratio. The protrusion is flat and the shape is pressure resistant, so the surface does not scratch as easily when the screen is mishandled.
-
-
Uses Fluidized beds, sieve shakers, etc.
Nunobiki Manufacturing’s commitment to detail
- 1We manufacture to your specified pitch (opening (aperture) 0.3H–3.25H).
- 2Perforated area pattern can be specified.
- 3Sheets can be punched with your specified multiple hole directions.
Product list

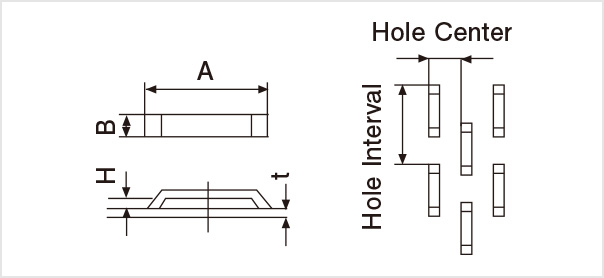

| Product No. | Thickness[t] (mm) |
Horizontal Width[A] (mm) |
Vertical Width[B] (mm) |
Aperture[H] (mm) |
Min. Hole IntervalP (mm) |
Min. Hole Center P (mm) |
Open Area | Detail |
|---|---|---|---|---|---|---|---|---|
| SC1 | 1.2 | 16.00 | 3.0 | 1.0H | 19.0 | 8.0 | 15.26% | Details |
| SC2 | 1.2 | 13.00 | 3.0 | 1.0H | 17.0 | 8.5 | 13.29% | Details |
| SC3 | 2.0 | 37.00 | 5.0 | 2.7H | 42.0 | 10.0 | 30.86% | Details |
| SC4 | 1.0 | 7.00 | 2.2 | 0.5H | 9.0 | 4.2 | 11.51% | Details |
| SC5 | 2.0 | 8.00 | 4.0 | 1.4H&1.8H | 13.0 | 8.0 | 6.23% | Details |
| SC6 | 2.0 | 8.00 | 4.0 | 1.25H | 16.0 | 8.0 | 3.97% | Details |
| SC7 | 1.0 | 5.00 | 3.5 | 0.85H&1.2H | 8.0 | 6.0 | 6.26% | Details |
| SC8 | 0.3 | 6.00 | 2.0 | 1.5H | 9.0 | 3.5 | 38.36% | Details |
| SC9 | 0.3 | 6.00 | 3.0 | 1.5H | 9.0 | 4.5 | 29.84% | Details |
| SC17 | 2.0 | 22.00 | 5.0 | 1.2H | 25.0 | 9.0 | 16.19% | Details |
| SC20 | 2.0 | 23.00 | 5.0 | 2.0H | 27.0 | 9.0 | 21.16% | Details |
| SC24 | 0.5 | 9.27 | 2.0 | 2.2H | 11.0 | 3.5 | 54.96% | Details |
| SC29 | 1.5 | 5.50 | 4.5 | 0.3H | 9.5 | 8.5 | 0.67% | Details |
| SC31 | 1.5 | 6.35 | 4.5 | 0.6H | 21.0 | 10.0 | 0.72% | Details |
| SC34 | 0.5 | 11.50 | 2.0 | 3.25H | 14.0 | 3.5 | 45.15% | Details |
| SC35 | 0.4 | 8.54 | 3.0 | 2.2H | 10.5 | 4.5 | 44.17% | Details |
| SC36 | 0.4 | 9.90 | 3.0 | 2.7H | 12.4 | 4.5 | 53.66% | Details |
| SC37 | 0.5 | 3.50 | 1.0 | 0.3H | 5.0 | 2.5 | 8.58% | Details |
| SC39 | 0.4 | 1.80 | 5.3 | 0.1H | 8.0 | 4.5 | 0.32% | Details |
