TRIANGLE RAISED-HOLE SCREENS
Special screens controlling the flow of air and wind
Uses Air flow conveyors, fluidized bed dryers, sieve shakers, etc.
Nunobiki Manufacturing’s commitment to detail

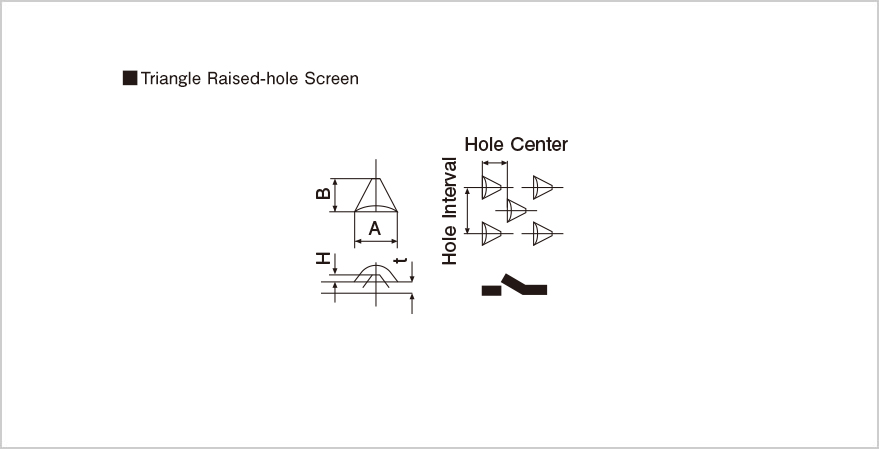

- 1We manufacture to your specified pitch (opening (aperture) 0.8H–3.5H).
- 2Perforated area pattern can be specified.
- 3Sheets can be punched with your specified multiple hole directions.
Product list
| Product No. | Thickness[t] (mm) |
Horizontal Width[A] (mm) |
Vertical Width[B] (mm) |
Aperture[H] (mm) |
Min. Hole IntervalP (mm) |
Min. Hole Center P (mm) |
Open Area | Detail |
|---|---|---|---|---|---|---|---|---|
| SA1 | 0.8 | 3.3 | 3.00 | 0.8H | 5.0 | 6.0 | 2.83% | Details |
| SA2 | 1.5 | 5.5 | 4.50 | 1.0H | 10.0 | 8.5 | 1.76% | Details |
| SA3 | 1.2 | 16.0 | 8.00 | 1.5H | 20.0 | 12.0 | 4.97% | Details |
| SA4 | 1.2 | 9.0 | 6.40 | 1.3H | 12.0 | 11.0 | 4.24% | Details |
| SA5 | 1.2 | 17.0 | 9.30 | 1.7H | 19.0 | 12.0 | 6.48% | Details |
| SA6 | 1.2 | 10.5 | 7.00 | 1.2H | 11.5 | 9.0 | 5.43% | Details |
| SA7 | 1.2 | 7.5 | 4.62 | 1.2H | 12.0 | 9.0 | 3.73% | Details |
| SA8 | 1.2 | 7.5 | 3.95 | 1.5H | 12.0 | 6.0 | 7.68% | Details |
| SA9 | 1.0 | 4.8 | 5.20 | 1.0H | 7.5 | 8.0 | 2.71% | Details |
| SA10 | 1.0 | 8.0 | 6.90 | 2.5H | 10.5 | 11.0 | 7.22% | Details |
| SA11 | 2.0 | 8.5 | 9.00 | 1.3H | 13.0 | 13.5 | 1.79% | Details |
| SA12 | 1.0 | 4.3 | 3.00 | 0.85H | 7.0 | 7.0 | 2.31% | Details |
| SA13 | 1.5 | 9.3 | 6.70 | 1.3H | 11.0 | 9.0 | 5.45% | Details |
| SA14 | 2.0 | 12.3 | 6.50 | 0.8H | 16.5 | 11.5 | 1.71% | Details |
| SA15 | 1.2 | 9.0 | 6.40 | 1.5H | 12.0 | 11.0 | 4.35% | Details |
| SA16 | 1.0 | 4.3 | 3.00 | 0.8H&0.6H | 7.0 | 7.3 | 3.85% | Details |
| SA17 | 2.0 | 12.4 | 9.70 | 3.5H | 16.5 | 13.5 | 7.19% | Details |
| SA18 | 1.5 | 12.4 | 7.60 | 3.0H | 16.5 | 11.5 | 7.88% | Details |
| SA19 | 2.0 | 12.4 | 9.40 | 3.0H | 16.5 | 13.5 | 6.55% | Details |
| SA20 | 2.0 | 8.5 | 9.00 | 1.3H | 16.0 | 17.5 | 1.12% | Details |
| SA21 | 1.2 | 5.5 | 5.50 | 1.1H | 8.0 | 9.0 | 2.58% | Details |
| SA22 | 1.5 | 8.5 | 5.50 | 0.8H | 18.3 | 11.5 | 1.29% | Details |
| SA23 | 1.5 | 9.0 | 6.00 | 1.5H | 12.0 | 7.0 | 4.95% | Details |
| SA24 | 0.8 | 9.3 | 8.00 | 3.5H | 12.0 | 11.0 | 11.66% | Details |
| SA25 | 1.5 | 5.9 | 4.90 | 1.0H | 8.5 | 7.5 | 2.35% | Details |
| SA26 | 2.0 | 17.0 | 9.10 | 2.0H | 21.0 | 12.5 | 5.89% | Details |
| SA27 | 2.0 | 11.0 | 8.50 | 2.5H | 15.0 | 12.0 | 5.25% | Details |
| SA28 | 1.5 | 7.5 | 6.00 | 2.0H | 11.0 | 9.5 | 4.60% | Details |
| SA31 | 1.2 | 5.0 | 4.20 | 0.75H | 6.5 | 6.0 | 2.13% | Details |
