Diamond Screens
We can punch holes of between 0/07Φ and 3.0Φ.
The processing width differs according to the material, thickness, and hole size.
-
-
Features
When compared to punched products, diamond screens with triangular pyramids have excellent dehydrating efficacy. The holes are given direction using a pressing method that does not produce metal chips, and they have a segmented shape, it is possible to punch sheets thicker than the hole size.
-
-
-
-
Uses Centrifuges, fluidized bed dryers, sieve shakers, grinders, and feather refining dust extractors
Nunobiki Manufacturing’s commitment to detail
- 1The screens can be perforated with micro holes, not possible with round hole screens.
- 2We are the only manufacturer in Japan producing these screens.
Product list

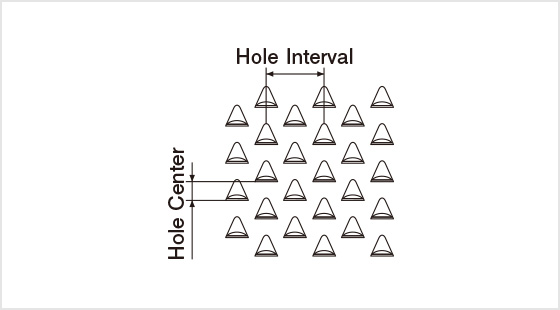

| Product No. | ßHole Size (mm) |
Hole Center (mm) |
Hole Interval (mm) |
Open Area | Max. Width (mm) |
Detail |
|---|---|---|---|---|---|---|
| DS1 | 0.07 | 0.44 | 1.6 | 1.80% | 500 | Details |
| DS2 | 0.12 | 0.45 | 1.6 | 3.70% | 500 | Details |
| DS3 | 0.15 | 0.55 | 2.0 | 3.90% | 500 | Details |
| DS4 | 0.15 | 0.58 | 2.5 | 3.40% | 500 | Details |
| DS5 | 0.20 | 0.55 | 2.0 | 5.90% | 500 | Details |
| DS6 | 0.30 | 0.70 | 2.5 | 7.50% | 500 | Details |
| DS7 | 0.40 | 0.90 | 3.5 | 7.60% | 500 | Details |
| DS8 | 0.50 | 1.35 | 5.0 | 6.00% | 500 | Details |
| DS9 | 0.60 | 1.20 | 5.0 | 8.80% | 500 | Details |
| DS10 | 1.00 | 2.00 | 5.0 | 11.30% | 500 | Details |
| DS11 | 1.50 | 1.95 | 5.0 | 22.00% | 500 | Details |
| DS12 | 1.50 | 1.85 | 6.0 | 20.70% | 500 | Details |
| DS13 | 2.00 | 2.60 | 8.0 | 19.70% | 500 | Details |
| DS14 | 2.50 | 3.50 | 10.0 | 18.20% | 500 | Details |
