SEMICIRCLE RAISED-HOLE SCREENS, HIGH AND LOW SCREENS
Ideal for drying, sieving, and dispersing purposes
Uses Air flow conveyor, fluidized bed dryers, sieve shakers, etc.
Uses sieve shakers, Air flow conveyor, etc.
Nunobiki Manufacturing’s commitment to detail
- 1We manufacture to your specified pitch.
- 2Perforated area pattern can be specified.
- 3Sheets can be punched with your specified multiple hole directions.
Product list

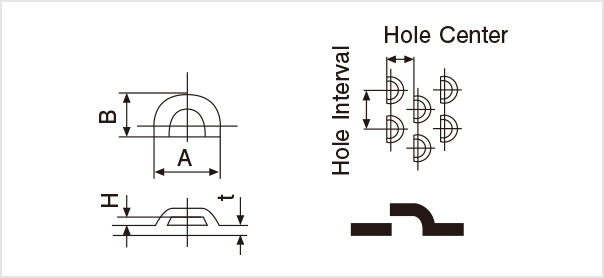

Semicircle Raised-hole Screens
| Product No. | Thickness[t] (mm) |
Horizontal Width[A] (mm) |
Vertical Width[B] (mm) |
Aperture[H] (mm) |
Min. Hole IntervalP (mm) |
Min. Hole Center P (mm) |
Open Area | Detail |
|---|---|---|---|---|---|---|---|---|
| SD1 | 1.2 | 8.2 | 5.4 | 1.1H | 11.00 | 8.00 | 6.14% | Details |
| SD2 | 0.8 | 6.0 | 4.0 | 1.2H | 7.50 | 5.00 | 8.79% | Details |
| SD3 | 0.6 | 3.0 | 2.8 | 0.6H | 6.00 | 3.23 | 2.30% | Details |
| SD4 | 1.5 | 13.5 | 8.3 | 2.0H | 16.00 | 11.00 | 9.31% | Details |
| SD5 | 0.6 | 5.5 | 4.3 | 0.35H | 7.50 | 7.00 | 2.37% | Details |
| SD6 | 1.0 | 7.3 | 4.7 | 1.2H | 9.00 | 6.50 | 6.88% | Details |
| SD7 | 2.0 | 22.2 | 12.5 | 5.0H | 28.00 | 19.00 | 12.72% | Details |
| SD8 | 1.5 | 6.4 | 4.3 | 0.4H | 8.00 | 6.00 | 1.36% | Details |
| SD9 | 3.0 | 13.0 | 10.0 | 0.7H | 16.50 | 13.50 | 1.65% | Details |

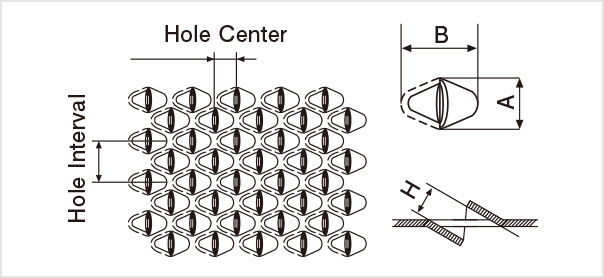

High and Low Screens
| Product No. | Thickness[t] (mm) |
Horizontal Width[A] (mm) |
Vertical Width[B] (mm) |
Aperture[H] (mm) |
Hole Interval (mm) |
Hole Center (mm) |
Open Area | Detail |
|---|---|---|---|---|---|---|---|---|
| HL3.2 | 1.0 | 5.2 | 7.8 | 3.2H | 8.3 | 4.5 | 10.54% | Details |
| HL4 | 1.0 | 6.1 | 8.6 | 4.0H | 12.0 | 6.0 | 12.87% | Details |
| HL6 | 1.0 | 8.2 | 12.0 | 6.0H | 13.0 | 7.0 | 15.75% | Details |
