SLOTTED GRILLS
We can punch
holes of between 0.02/2.5mm and 1.5/6.0mm.
-
-
Features

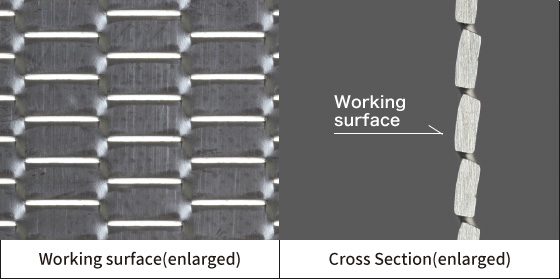

We at Nunobiki Manufacturing produces slotted grills using dedicated machines designed and made by us. Our product is one of the few domestically produced with a back taper. The holes, whose shape is the same as that of slotted screens, are given direction using a pressing method that does not produce metal chips. The profile is graded and the sheet can be punched with holes a few times its thickness.
-
-
-
-
Uses Filters, centrifuges, strainer sieve shakers, etc.
Nunobiki Manufacturing’s commitment to detail
- 1We are the only manufacturer producing slotted grills in Japan.
- 2We provide micron accuracy products.

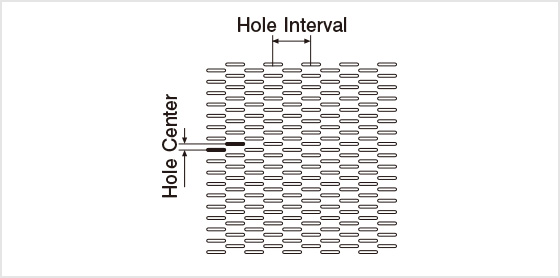

Product list
| Product No. |
Hole Size (mm) |
Hole Center (mm) |
Hole Interval (mm) |
Open Area | Max. Width (mm) |
Detail |
|---|---|---|---|---|---|---|
| SG1 | 0.02/2.5 | 0.40 | 5.5 | 2.30% | 500 | Details |
| SG2 | 0.04/1.45 | 0.44 | 3.3 | 4.00% | 500 | Details |
| SG3 | 0.05/3.0 | 0.40 | 6.7 | 5.60% | 500 | Details |
| SG4 | 0.07/2.5 | 0.45 | 5.5 | 7.10% | 500 | Details |
| SG5 | 0.09/1.45 | 0.45 | 3.3 | 8.80% | 500 | Details |
| SG6 | 0.1/2.5 | 0.50 | 5.5 | 9.00% | 500 | Details |
| SG7 | 0.1/3.5 | 0.55 | 8.0 | 8.00% | 500 | Details |
| SG8 | 0.15/2.5 | 0.60 | 5.5 | 11.40% | 500 | Details |
| SG9 | 0.15/3.0 | 0.70 | 6.7 | 9.60% | 500 | Details |
| SG10 | 0.15/3.5 | 0.65 | 8.0 | 10.10% | 500 | Details |
| SG11 | 0.2/2.5 | 0.65 | 5.5 | 14.00% | 500 | Details |
| SG12 | 0.25/1.45 | 0.60 | 3.3 | 18.30% | 500 | Details |
| SG13 | 0.25/3.5 | 1.00 | 8.0 | 10.90% | 500 | Details |
| SG14 | 0.3/3.0 | 0.80 | 6.7 | 16.80% | 500 | Details |
| SG15 | 0.3/3.5 | 0.85 | 8.0 | 15.40% | 500 | Details |
| SG16 | 0.4/3.5 | 1.10 | 8.0 | 15.90% | 500 | Details |
